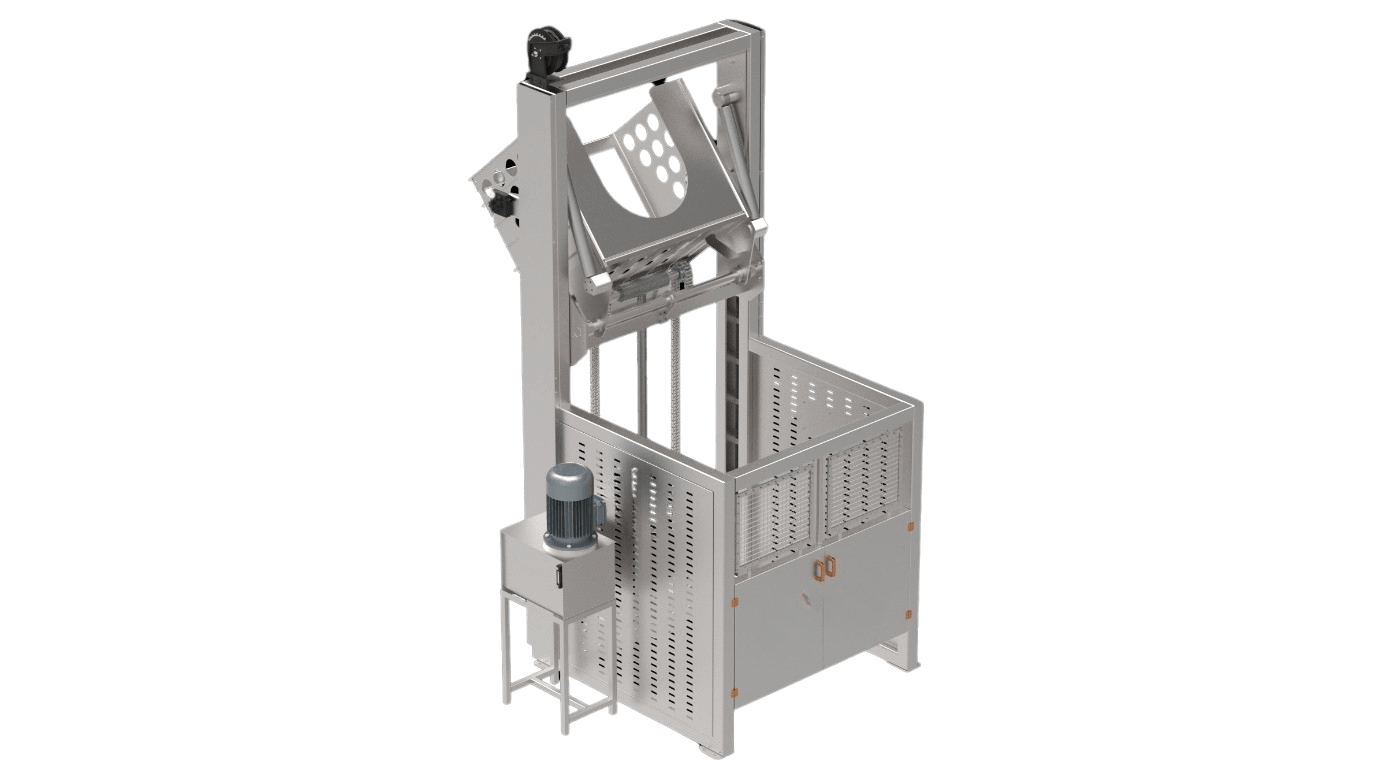

Case Overturning Machine
The crate tipping machine ensures that the product in standard sized crates is poured into the dosing hopper in the next stage. Hydraulic and electronic equipment, Fast movement ability and time saving, Strong design, quality workmanship and excellent performance, Comfortable use, easy to clean feature and Front covers that prevent the risk of accidents by deactivating the system when opened.
Contact From WhatsappTechnical Specifications
- All stainless material, highly durable and practical
- The case overturning machine ensures that the product contained in the basins having standard dimensions is poured into the dosing hopper at the next stage.
- Hydraulic and electronic equipment
- Fast mobility ability and saving from time
- Powerful design, quality workmanship and excellent performance
- Comfortable handling, easy cleaning
- Front covers that prevent accident risk by disabling the system when it is opened

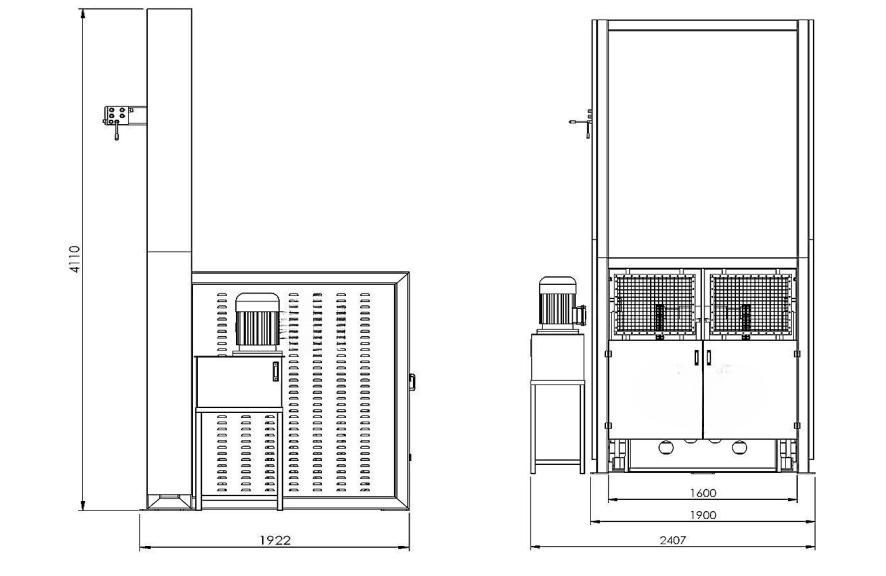

- Height : 4110 mm
- Width : 2407 mm
- Length : 1922 mm
- Standard Case Dimensions : 1195x1005x725 mm
- Max. load capacity : 600 Kg
- Capacity per hour : 3 Ton
- Movement : Hydraulic
- Used material : 304-stainless
- Used grease : Hydraulic grease numbered 68
- Grease volume : 90Lt
- Engine power : 11Kw/h
- Operation pressure : 180 Bar
- Min. Operation temperature : 0 °C
- Max. Operation temperature: 40 °C
