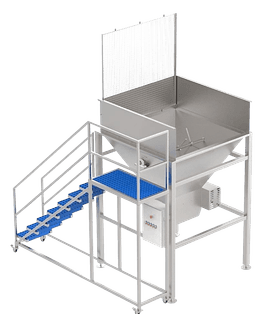

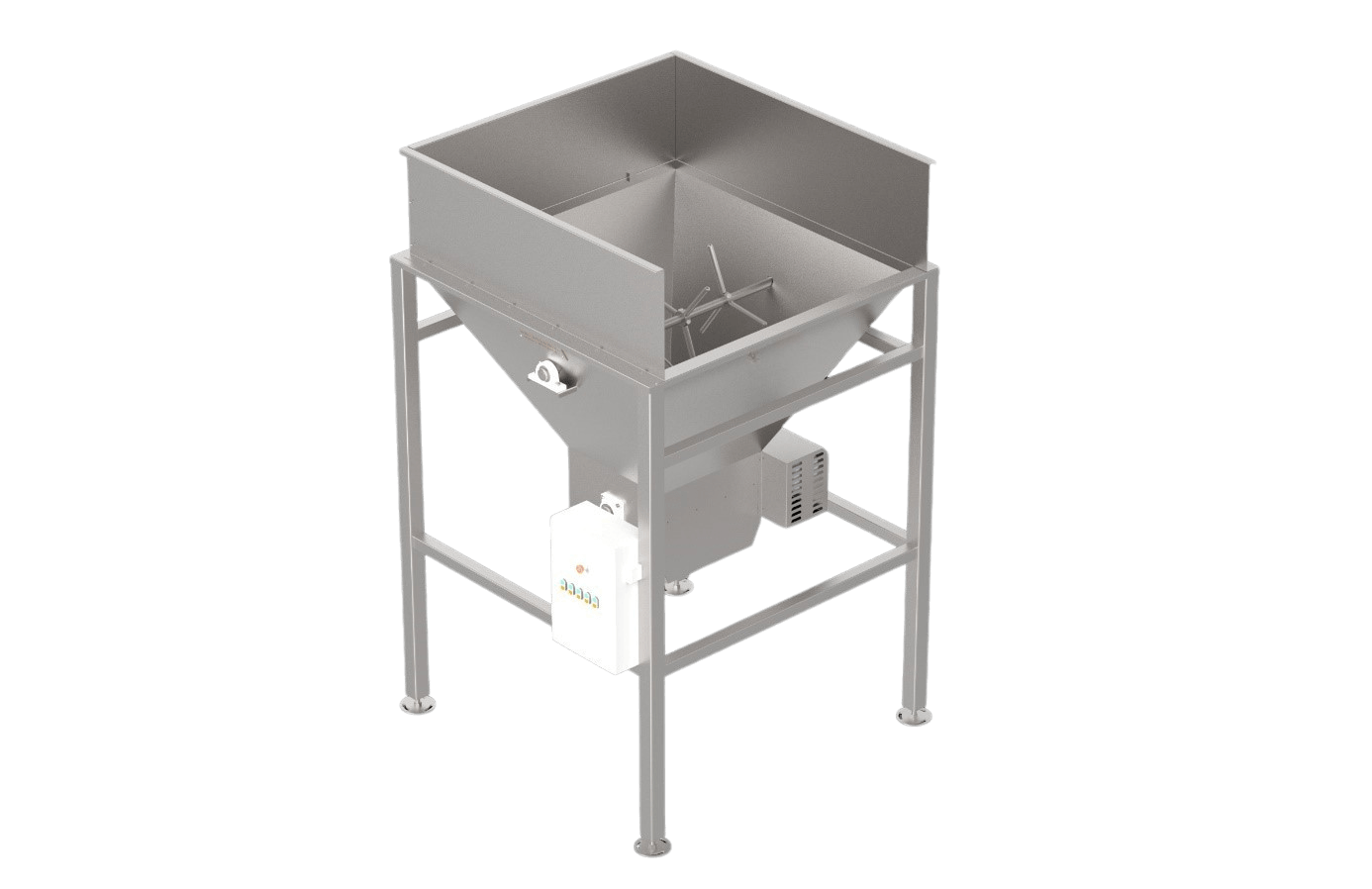

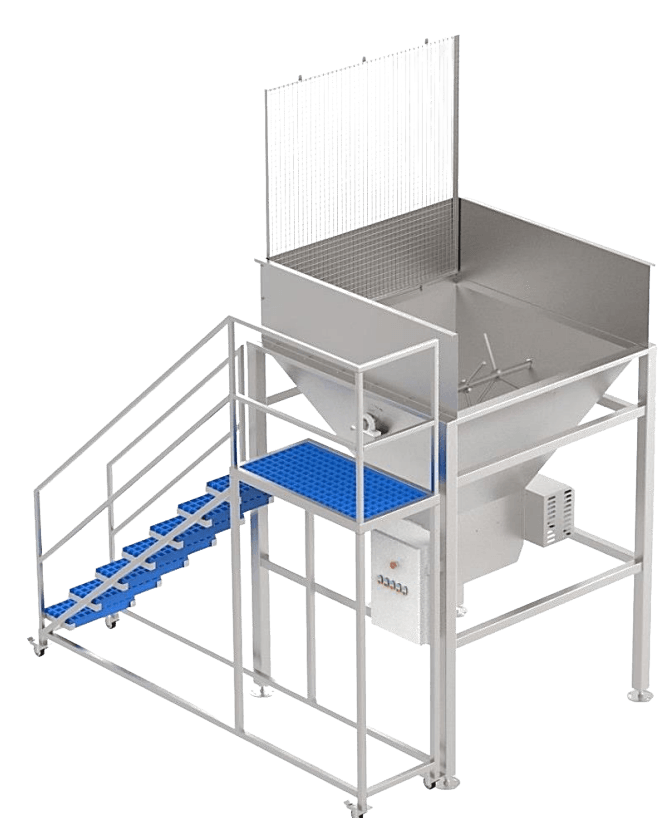

Anchor Dosing Bunker
The anchor dosing hopper allows the dosage of large amounts of products falling from the case tipping machine in the form of lumps. Thanks to the anchors located inside, it allows the lump-shaped products to be divided into smaller pieces and easily transferred to the conveyor belt. It offers a more comfortable use with the electronic hand-controlled control system. It can be specially produced in different shapes and sizes depending on the place and purpose of use.
Contact From WhatsappTechnical Specifications
- All stainless material, highly durable and practical
- Anchor dosing bunkers allow the dosing of the falling product a lot of and in the form of balls, from the case tıpped machıne.
- Gridiron system that provides work safety and cleanliness
- Thanks to the anchors located in the inner part, the products in the form of balls are separated into smaller pieces and can be easily transferred onto the conveyor belt
- Electronic hand operated control system

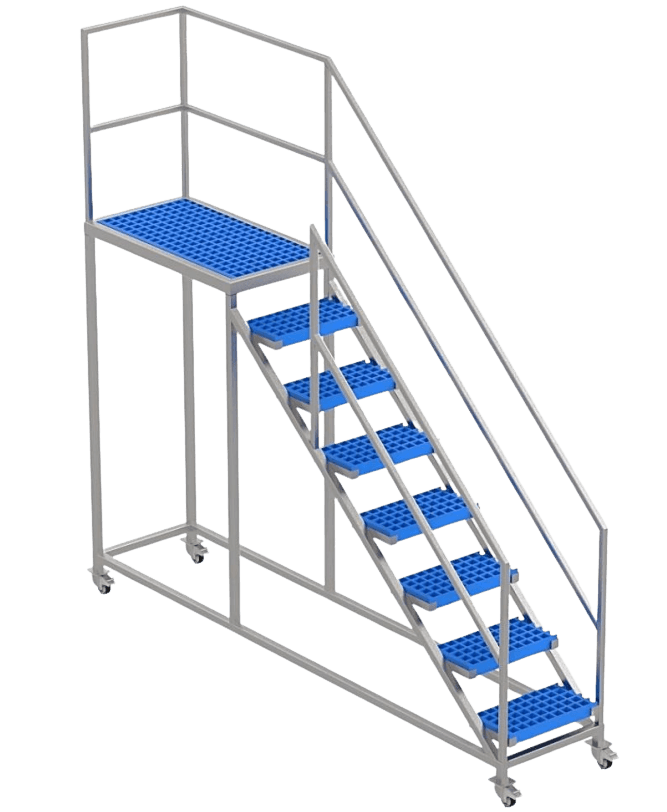

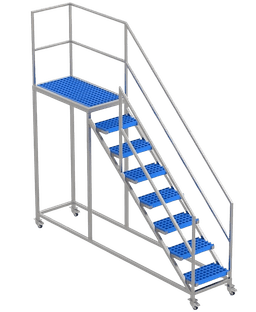

- Ergonomic platform designed in accordance with the stair standards from stainless material.
- It can be specially produced in different shapes and sizes depending on usage place and purpose.
- Height : 3756 mm
- Width : 1730 mm
- Length : 1730 mm
- Standard Case Dimensions : 1195x1005x725 mm
- Max. load capacity : 500 Kg
- Capacity per hour : 3 Tons
- Movement : Gearmotor
- Engine power : 3 Kw/h
- Used material : 304-stainless
