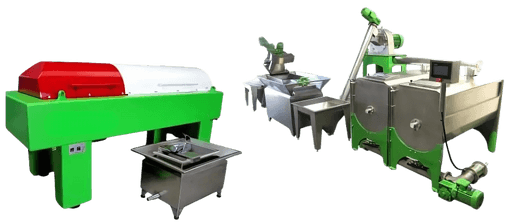

Farmy Prof 500 Professional Olive Oil Extraction System
The system is a professional olive oil extraction system and it is the same equipment used in olive oil factories. The equipments have been minimised according to low capacity requirements.
Contact From WhatsappTechnical Specifications
- Bunker
- Used to transfer the olives to leaf aspirator and washing
- Motor Power: 0.18 kw 1500 rpm.– 30/1 reduction.
- Conveyor Material: AISI 304 Stainles Steel
- Bunker material thickness: 2 mm
- Capacity: 250Kg
- Leaf Aspirator
- Motor Power: 1.1 Kw 3000 rpm.
- Material: AISI 304 Stainless Steel
- 1000 m3 hour leaf capacity.
- Olive Washing Machine
- Motor Power: 0.5 Kw 3000 rpm
- Material: AISI 304 Stainless Steel
- Capacity: 600 kg/hour
- Crusher Feeding
- Motor Power: 0.5 Kw 3000 rpm
- Hammer type crusher
- Material: AISI 304
- Malaxing Group
- Motor Power: 0.75Kw 24 rpm. Helical Gear
- Double wall malaxing body and convenient for heating.
- Double chamber for continuous operation
- 3 pcs Malaxer, connected to each other
- Dough Pump
- Motor Power: 1.1 Kw 1500 rpm
- Material: AISI 304 Stainless Steel
- DECANTER: It has a spiral structure and a drum providing high oil yield. Can work at high speeds, to provide high G- Force. Thanks to the Gearbox existing as a standart part in decanter. The decanter has a professional type planetary gearbox.
- Technial Specifications
- Model: G-FORCE 240
- Drum Diameter: 240 mm
- Drum Material: AISI 304 Stainless
- Helix Material: AISI 304
- Helix Surfaces: Thickness 4 mm, Tugsten Carbide plated surfaces
- Motor Power: 7.5 Kw 3200 rpm / 380 v
- Motor Class: IE2 Low Energy Consumption
- Planetary Gearbox
- Capacity: 600 kg/hour (Cold and Hot ecologic system)
