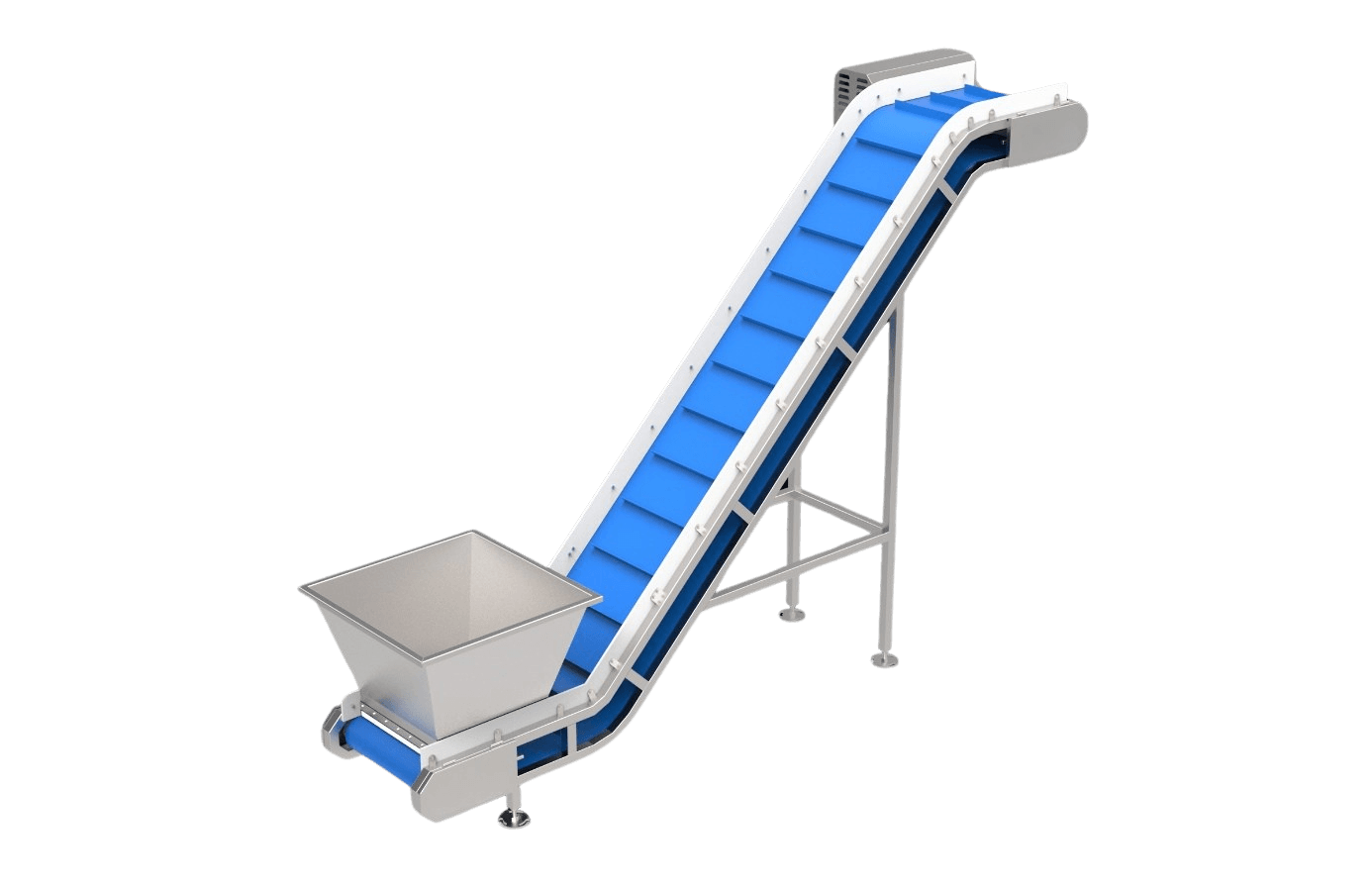

Z Type Modular Conveyor
Z type modular belt conveyors come to the aid of products that cannot be transported to steep points that are difficult to reach with PVC belts. Thanks to the holes on them, modular belts that do not retain water, are highly resistant to high temperatures and are easy to clean offer a very comfortable working opportunity. They can be specially produced in different sizes depending on the place and purpose of use.
Contact From WhatsappTechnical Specifications
- All stainless material
- It can be specially produced in different shapes and sizes depending on the usage place and purpose
- Pitch: 50.8 mm

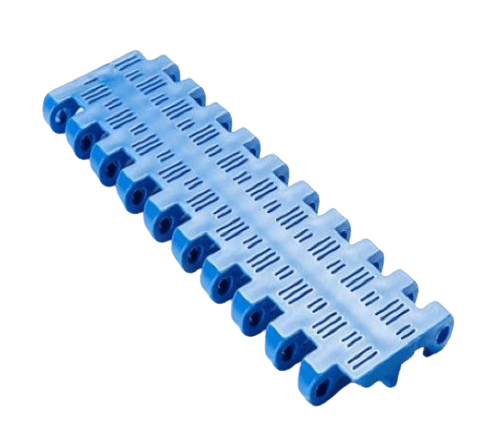

- Belt Surface: Foraminated, Smooth Surface
- Minimum Width: 200 mm
- Aperture Rate (%): %11 (Maximum aperture 1,2x12mm
- Profile: Yes (T25, T50, T75, T100, T150)
- Side Wall: Yes (h=25 mm, h=50 mm, h=100 mm)
- Pin Diameter: Ø7 mm
- Approval: FDA and EU
- Curve: No
- Colour: Optional
- Cleanability Perfect
- Belt Thickness: 16 mm
